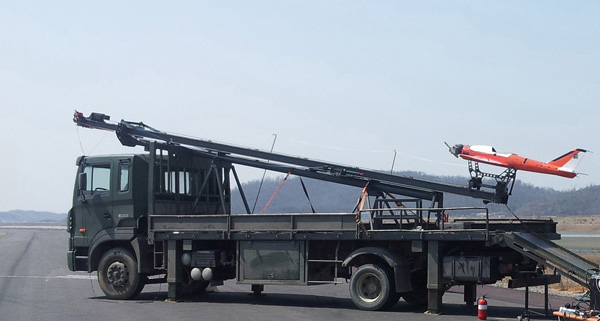

UAV/UAT Launching System

Brief Information:

Use(s):
Launching system for fixed wing UAVs and Target Drones

Dimension:
Overall Rail Length(Fulley Extended): 37.2 ft. (11.35m)
Rail Width: 0.92 ft. (0.28m.)
Weight: 5,500 lb. (2,500kg)

Performance:
Aircraft Weight Range: 110~485 lb. ( 50~220 Kg)
Max. Launch Speed: 114ft/sec (125Km/h)
Launch Angle: 0°~10°
Max. Acceleration: 10G
Operating Temperature: -22º~+122ºF (-30º~+50°C)
Min. Setup Time for Launch: 15 min

General:
Energy Source: Hydraulic/Pneumatic (Closed Loop)
Gas: Nitrogen
Electric Power: 12V DC

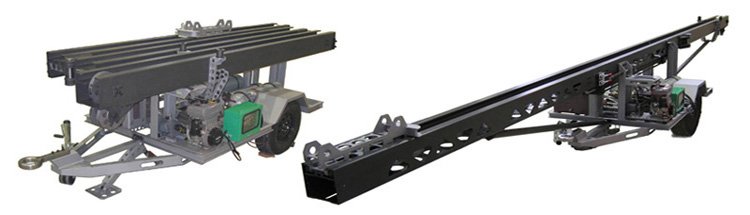

Fulley folded configuration for transportation                                         Launcher fulley deployed for operation

*The specifications maybe changed at any time for performance improvement.
