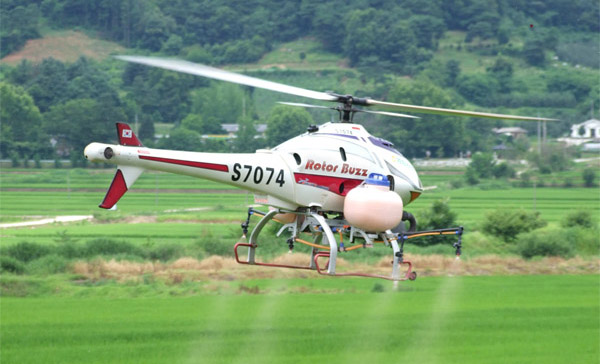

Rotor Buzz

The Rotor Buzz VTOL UAV was originally intended to be a low-cost agricultural crop dusting equipment.  The first Rotor Buzz was introduced to the crop dusting market in mid-2009.  Since then, several Rotor Buzz have been used for this application in the far East.  With specially designed spray equipment attached, a Rotor Buzz is capable of spraying liquid and /or granular forms of crop dusting chemicals over 40~60 ha. (99~148 acre) per day.  Some research oriented customers use the Rotor Buzz as a platform for their research testbed because of its heavy payload capability.  UAV Research Lab., Inc. (UAVRL) is the proud worldwide exclusive distributor of the Rotor Buzz rotary wing UAV.

Brief Information:

Use(s):
Agricultural Crop Dusting

Power plant:
Engine Type: 2 Cycle Piston, Air Cooled, Displacement: 340CC.
Engine Output: 25 hp.

Dimension:
Main Rotor Diameter: 10.5 ft. (3200 mm.)
Overall Length: 11.5 ft. (3500 mm.)
Overall Height: 3.4 ft. (1050 mm.)

Weight:
Empty Weight: 132 lb. ( 60 Kg.)
Max Take off Weight: 220 lb. (100 Kg.)
Practical Payload Weight: 66 lb. (30 Kg.)

Performance:
Endurance: 1.1hr. with standard internal Fuel Tank(12L.)



* Data are obtained at ISA Standard Atmosphere Conditions of nominal sea level
* Practical Payload includes 12L fuel
* The appearance and specification may be changed without prior notice if required
